Al Aitken

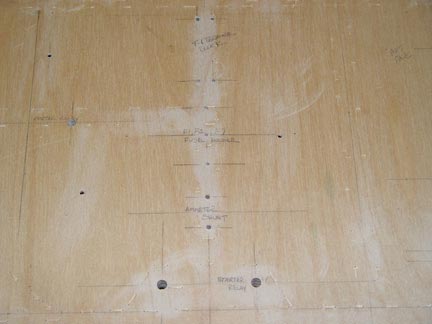

Electrical equipment mounting holes drilled on aft left face of number 6 frame.

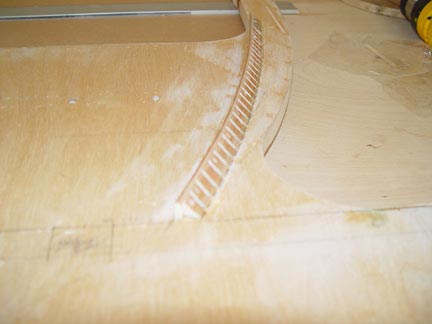

Interior skin gluing strip glued to forward face of number 6 frame.

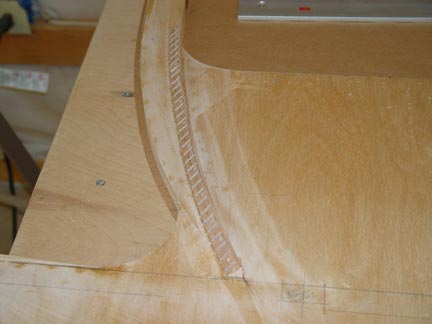

Notice the light colored dots on the gluing strip.  These are for the toothpick dowels used to allow the gluing strip to be glued and clamped accurately along the proper inside skin curve on the front face of the number 6 frame.

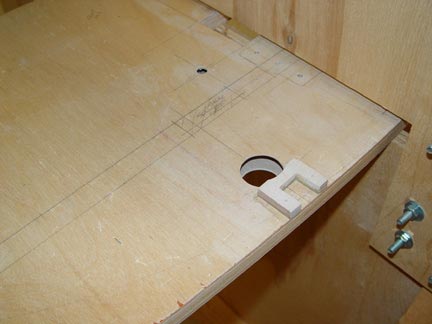

Saddle gusset glued to the front face of the number 6 frame to pick up the 20mm square spruce strip wheel well framing.

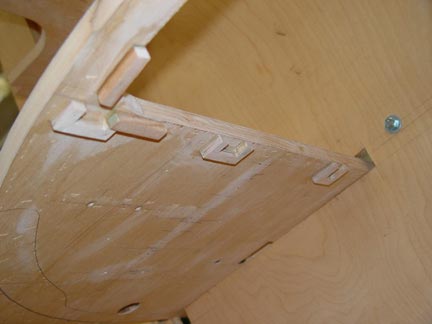

Baggage compartment shelf flooring saddle gussets and interior skin gluing strips glued to the aft face of the number 6 frame.

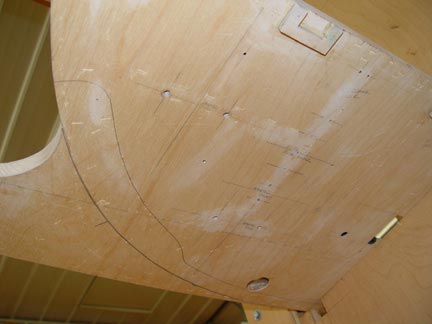

The laminated external skin gluing strip marked on the aft face of the number 6 frame.
