TruTrak Autopilots

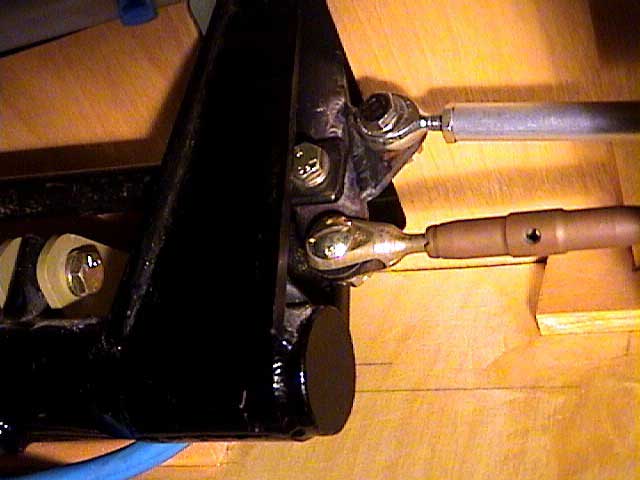

  These photographs detail the TruTrak Flight System's Aileron AP Servo installation (now that I have progressed this far.) The AP servo sits under the right wing's fuselage fairing and is fully accessible through the copilot's removable floor section. The TruTrak 2-Axis AP System works great on the ground, unfortunately this is all I can report for now.

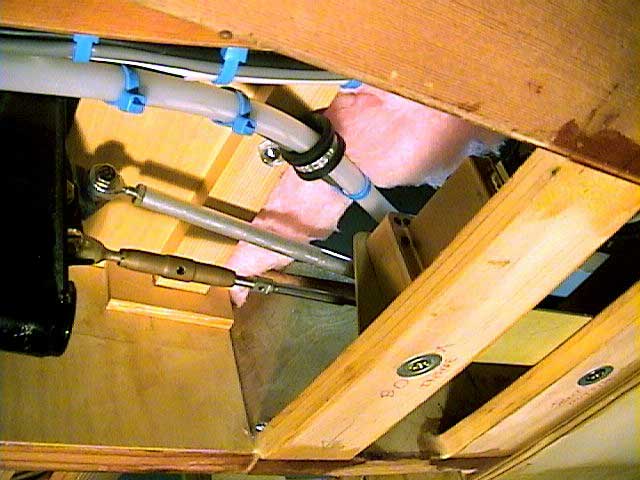

Here's the servo and pushrod.

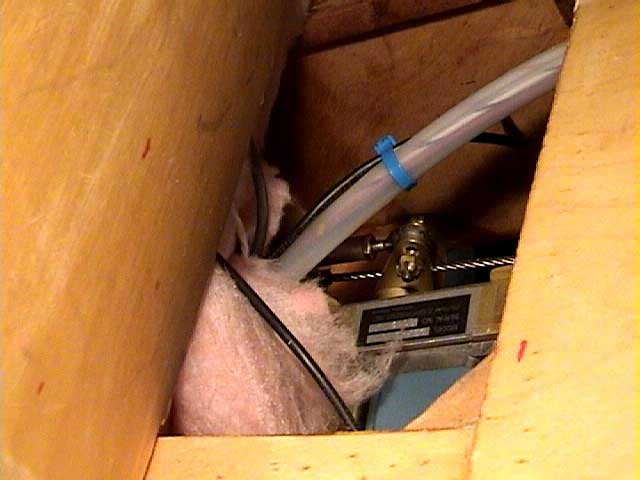

Looking down on the servo and pushrod.
