Clip Angle Tool

Clip Angle Tool
This tool allows you to place a clip angle, a standard attachment used in structural steel design.

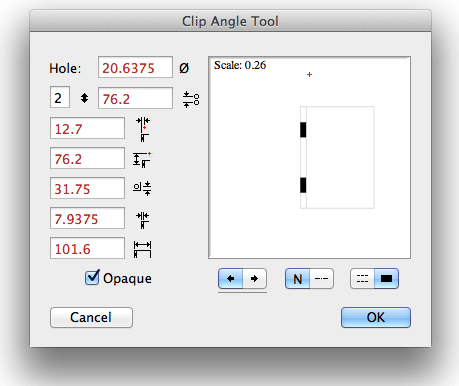

Set the dimensions of the clip angle in the tool's dialog. You may choose between a left and right presentation.

Click in the drawing to place the clip angle.
