Involute Spline Tool



Involute Spline Tool

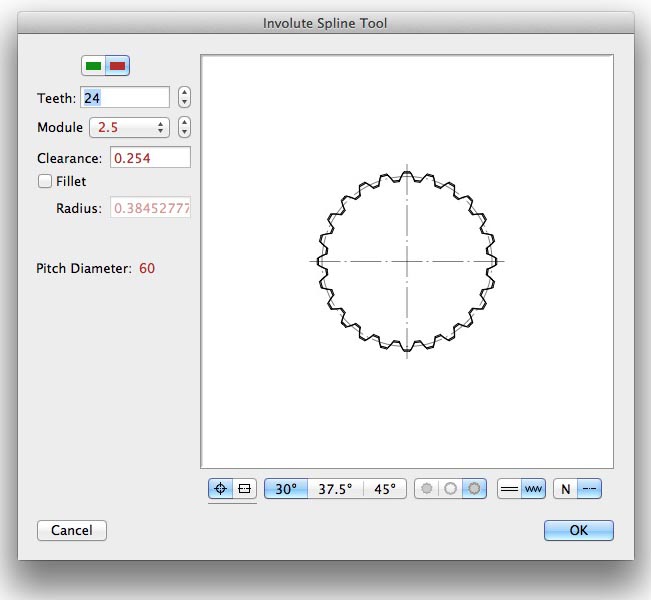

This tool allows you to draw an involute spline by side or end view.

An involute spline is a specialized type of shaft typically used in drive shafts for vehicles.

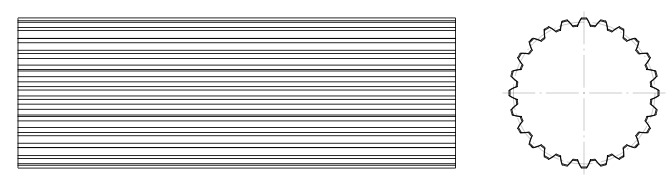

Side and end view of an involute spline
