Other Commands




Black Color for All
Changes the pen color of all objects on visible layers to black. The purpose of this is to reverse the effect of Colorize All.

You can control whether text objects are changed to a black color. To set this, press the Option key, choose Black Color for All, and make the selection in the dialog.



Colorize All
Colorize All is a quality-control device for line weights. Colorize All converts all objects on visible layers to various pen colors. The colors are presently hard-coded to light brown for Hairline, light blue for Normal, red for Outline and brown for Section Line styles. All other pen sizes are made black. This allows you to see at a glance if you have the right pen sizes in the drawing.


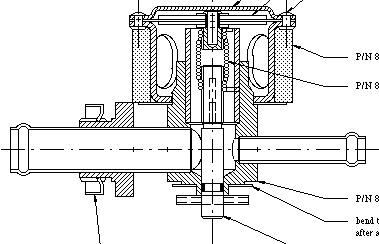

Using Colorize All and Black Color for All alternatively.
Note how easy it is to see the line thickness 'by color'.



Convert to Group
Converts External objects to groups without a protest alert and also does intelligent things when converting some External object to groups. For example, Insulation Fill objects have the invisible rectangle thrown away. With Path objects, the invisible objects are all assigned pen patterns to they will be visible.

Convert to Group also converts a rounded rectangle to a group of lines and arcs.

Convert to Group will 'explode' dimension lines and arcs to ordinary lines, arcs and text objects.



Jiggle
Jiggle moves selected objects in random angles and at random distances within the maximum distance specified or at a relative distance based on the size of the object. This is intended for scattering shubbery or similar objects and to give a drawing a more human touch.

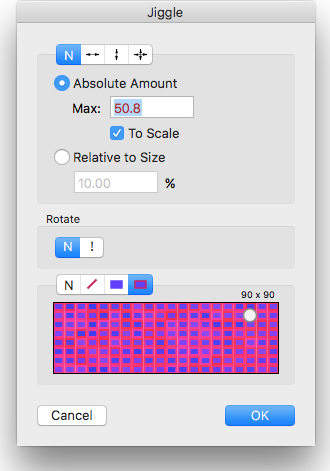

To set the default settings for Jiggle, make sure no objects are selected. Press the Option key and choose Jiggle from the Tool menu. The following dialog will appear:

Choose the direction: none, horizontal, vertical or none.

Choose between an absolute amount or a distance relative to size. The distance the objects will be moved will be random between 0 and this distance. If you select the To Scale option, the distance will be to the drawing scale. If To Scale is not selected, the distance will be an on-paper size. A relative distance, say 10%, is based on the average of the width and height of the object.

Choose no rotation or random rotation.

Choose color noise for lines, fill or both.

Drag the noise slider around for saturation and brightness. Hue changes are very miinor and are based on these two settings.


Here's an example of Jiggling objects relative
to size -- for 10, 20, 30, 40 and 50% of size.

To jiggle objects in the drawing:
Select the objects to be jiggled (moved in random angles and at random distances within the maximum distance specified).

Choose Jiggle from the Tool menu.

If you wish, you may press the Option key as you choose Jiggle from the Tool menu to bring up the dialog box as described above.

The selected objects will be jiggled.

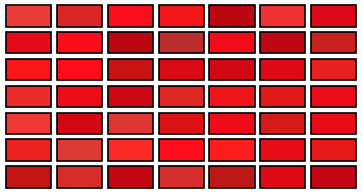

Color noise does this.



Mirror by Line
Mirror by Line will mirror the selected objects just like the PowerCADD Mirror command (with Copy Items selected); however, instead of drawing a line about which to mirror the selection, you click on the line. The purpose of this is to allow you to mirror objects in an easier manner than drawing a line, since it's sometimes possible to miss a snap to an existing line.

To use Mirror by Line:
Select the objects to be mirrored.

Choose Mirror by Line from the Edit menu. The cursor will change to a Picklefork cursor, indicating that you are expected to click on a line.

Click on any line in the drawing -- even in a group -- to indicate the line about which the objects are to be mirrored.

The selected objects will be mirrored about the line.

When the Picklefork cursor is showing, you may cancel the command by pressing the Enter or Return key.



Rotate by Line
Rotate by Line allows you to easily accomplish a precision rotation of the current selection to match a line in the drawing. This is particularly useful for precise rotation of text to be parallel to a line in the drawing.

To rotate selected objects:
Select the object you want to rotate.

Choose Rotate by Line from the Arrange menu. The cursor will change to a Picklefork cursor, indicating that you are expected to click on a line.

Click on any line in the drawing -- even in a group -- to indicate the line.

The selected objects are rotated by the angle of the indicated line.



Simplify
Simplify removes every other point from selected polygons, except it skips over any point where the angle changes by more than 30°. The removed points are 'exploded' so that you can see what is being done. This is useful for removing unwanted points on polygons created with the Freehand tool or after using Squiggle (however Squiggle now has a Simplify option built into it).

To simplify polygons in the drawing:
Select the polygons you want to simplify.

Choose Simplify from the Tool menu.

The selected polygons will be simplified.

Since the primary reason for doing this is to reduce the file size, bear in mind that when you run Simplify on a drawing that has been completely squiggled, immediately after using Simplify, the file will be approximately 1.5 times the original size, because all of the original squiggled polygons are still being stored for undo. To clear these out, simply draw a line or some other object and then delete it.
