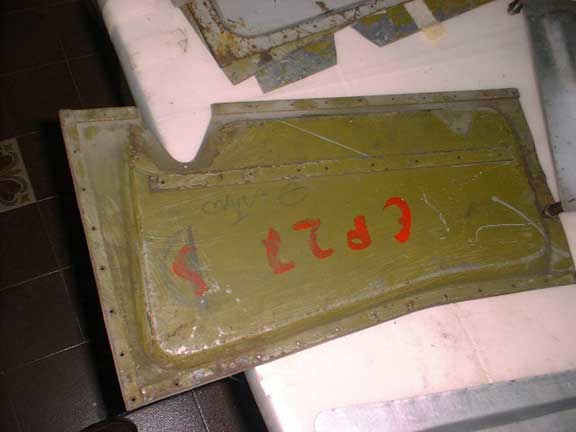

The jig for the aluminum gear goor. CP 27 means "Carrello Posteriore part n° 27" (landing gear part 27). If you look at the drawing in the previous picture you can find the same number to identify the drawing linked to this part.

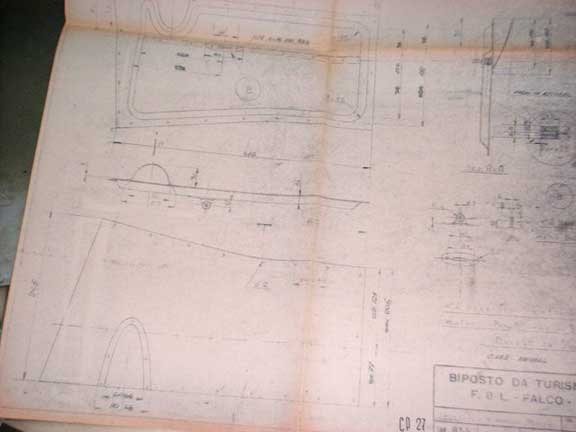

The original drawing of the main landing gear doors, signed by Ing. Frati.

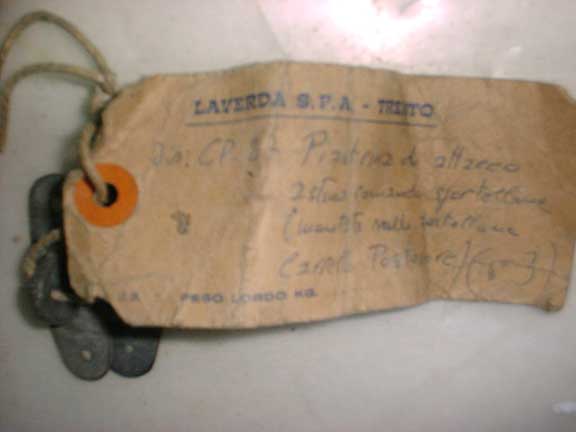

Here there are the two hinges on the gear door. They were made by Laverda and also here you can read Dis (drawing) CP 27.

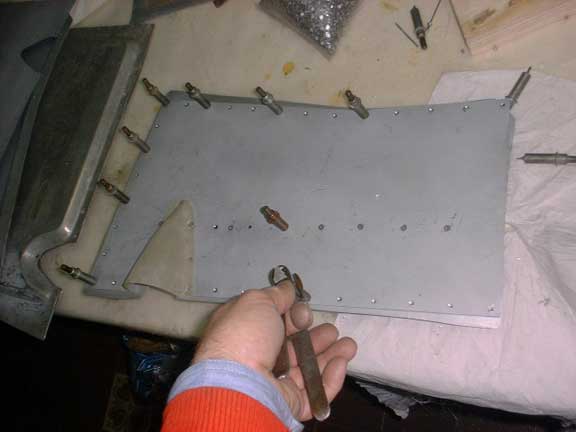

The jig proved to be very useful, and I'm using the same Clecoe pliers that were used to produce many production Falcos.

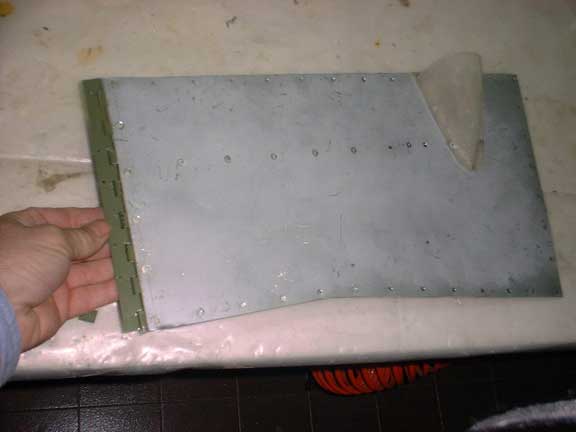

The finished doors.

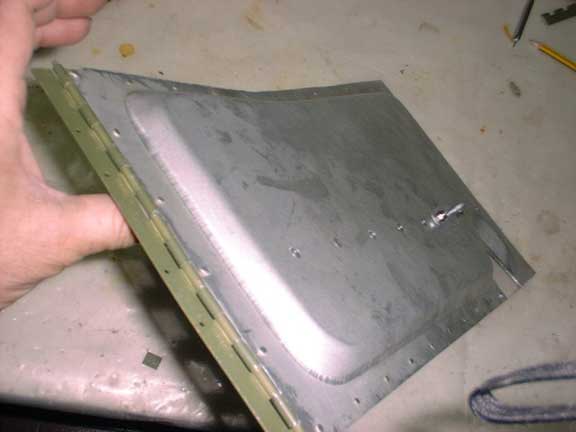

Upper surface of the gear doors.
