Shear Tab Tool



Shear Tab Tool
This tool allows you to place a shear tab in the drawing. A shear tab is a standard attachment use in structural steel detailing.

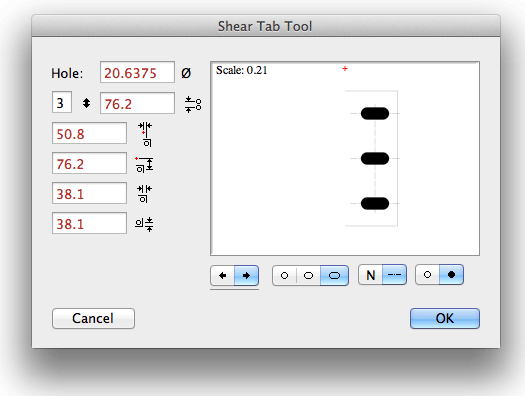

Set the behavior of the tool in the tool's dialog.

Choose the dimensions of the shear tab, hole centerlines and whether the holes are filled with black or not.

To place the shear tab, simply click in the drawing. You may press the Option key before clicking to place the holes only.
